Cage rinser for hygienic can cleaning for common formats
Highly flexible can cleaning with Whystler Automation’s cage rinsers
Cage rinser for cans – efficient cleaning with water or air or both

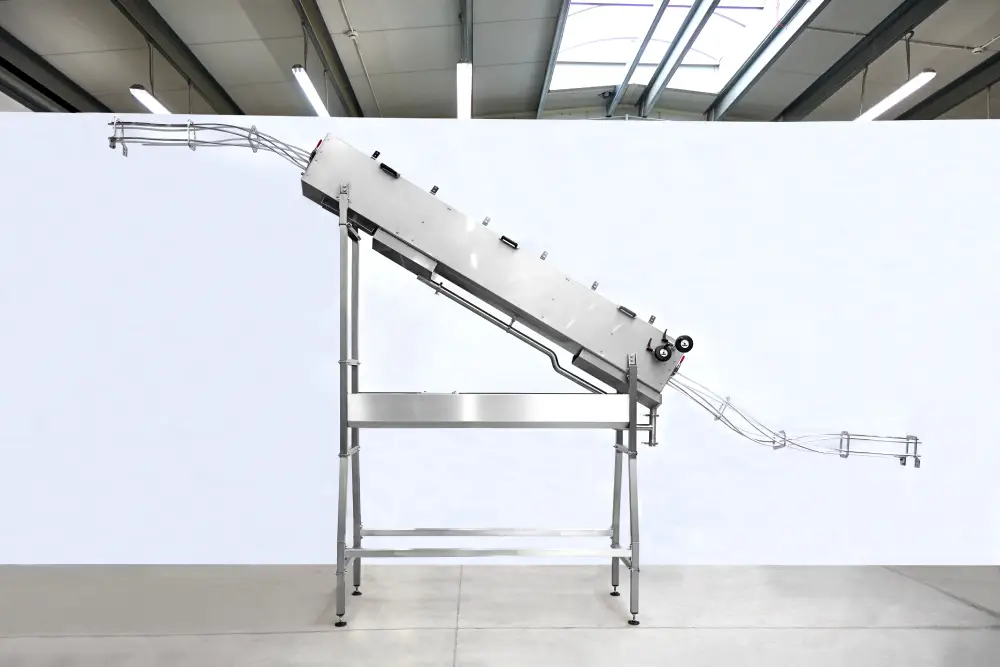

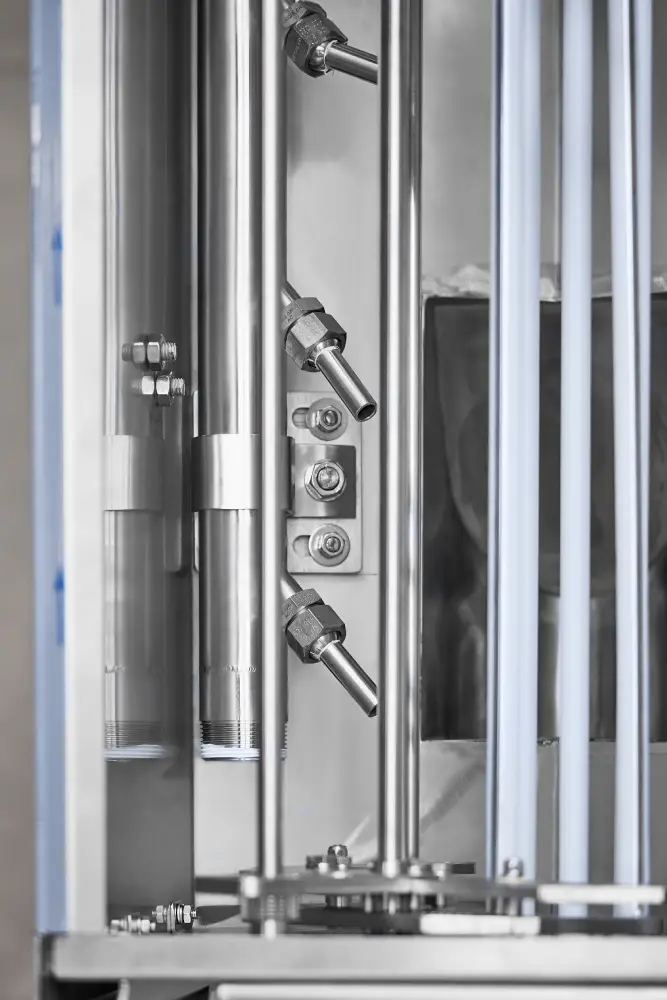

The Cage rinser from Whystler Automation offers a reliable and highly automated solution for the hygienic cleaning of beverage cans prior to filling. Cleaning is possible with either water, (ionized) air, or a combination of water and air – other cleaning technologies are also feasible. Thanks to its modular design with a standard inclination of 30°, it is optimally designed for efficient rinsing and can be flexibly integrated into existing filling lines.
Processing of all common can sizes

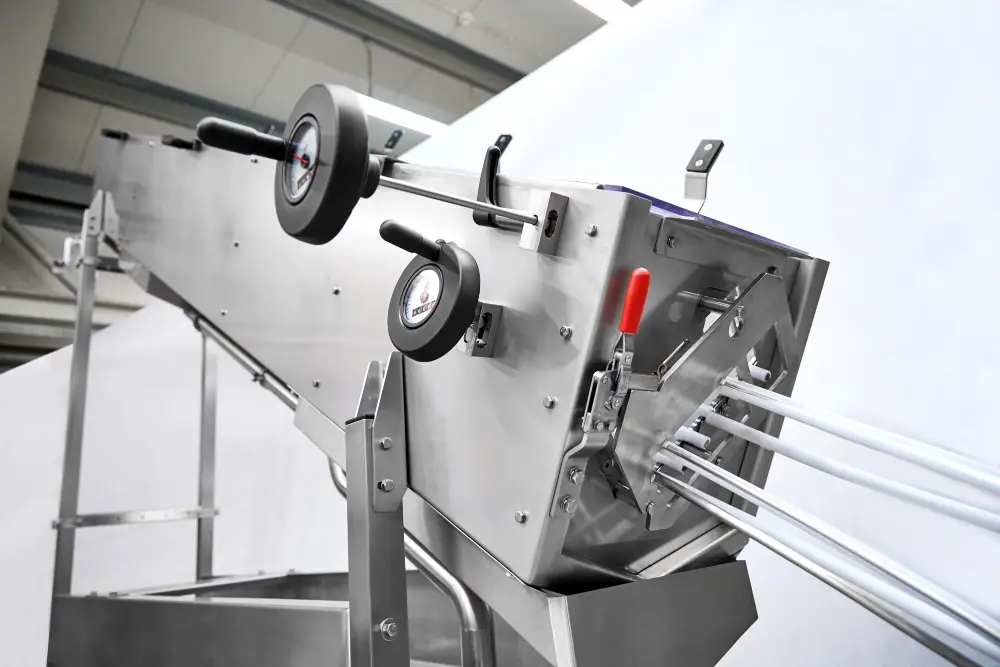

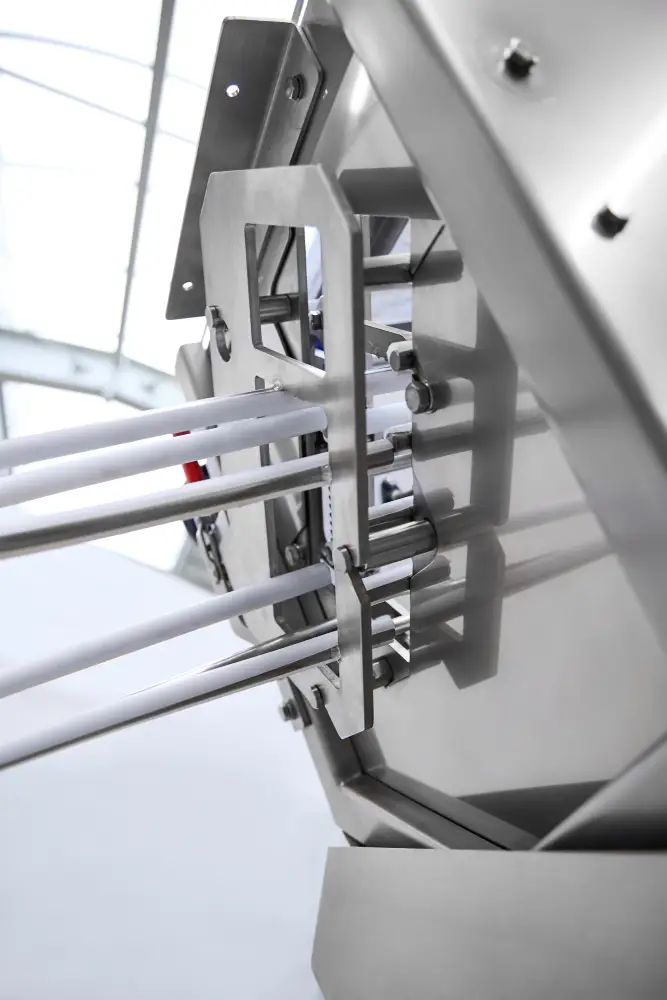

All beverage cans with internationally standard dimensions can be cleaned with the cage rinsers. Changing to other formats requires a simple manual exchange of the inlet and outlet heads – quick and safe. This makes the cage rinser suitable for both standard and special sizes. If you don’t want to change formats, please take a look at the Blockrinser
User friendly Design

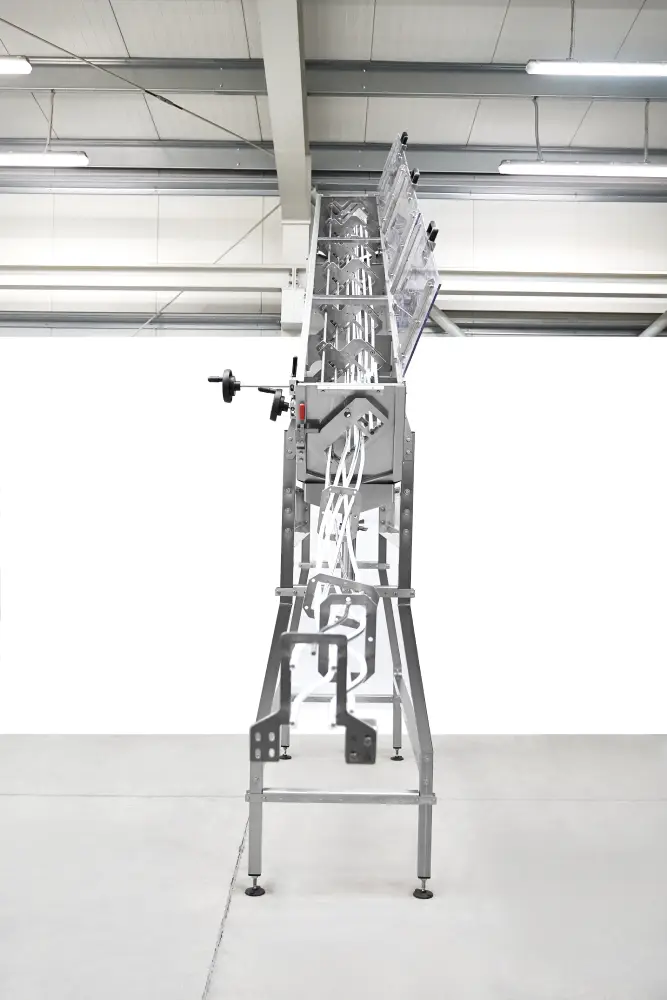

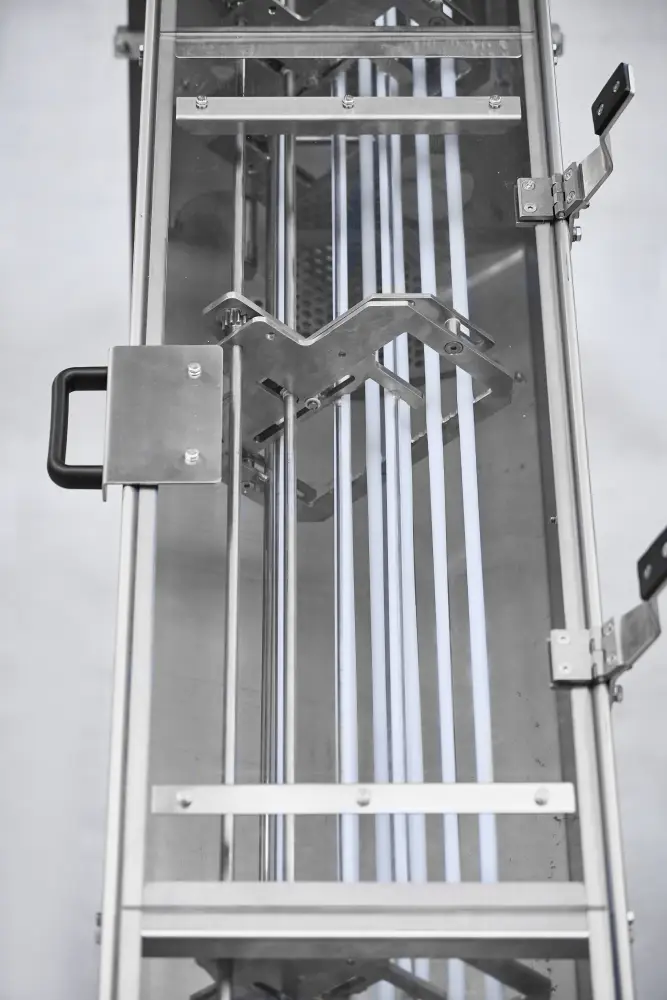

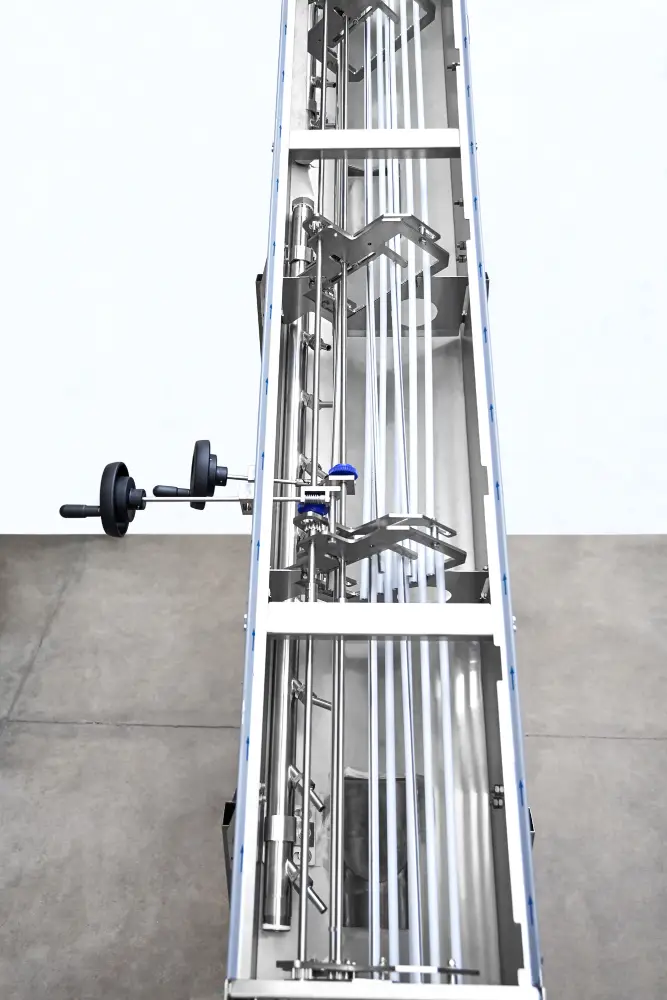

For easy access along the entire channel length, the cage rinser features hinged PETG or stainless steel covers, depending on the model. This design not only facilitates maintenance and cleaning but also increases operational reliability during the ongoing production process.
Powerful and versatile
With a cleaning capacity of up to 120,000 cans per hour, the Whystler Automation cage rinser is the right choice for beverage manufacturers with high throughput. At the same time, other industries such as the food, cosmetics, and pharmaceutical industries also benefit from its efficiency and reliability.
Would you like to purchase a cage rinser or learn more about the benefits of our automated rinsers?
Contact us now – we will advise you individually and show you how to make your can cleaning more future-proof, hygienic and efficient.
The advantages of the Whystler cage rinser
Flexible cleaning technologies
Cleaning of all available can formats
Various cleaning media
High user-friendliness
High cleaning performance
Flexible cleaning technologies
Cleaning of all available can formats
High cleaning performance
Flexible cleaning technologies
Cleaning of all available can formats
Technical data for the cage rinser
| Feature | Details |
|---|---|
| Cleaning performance | up to 120,000 cans/hour |

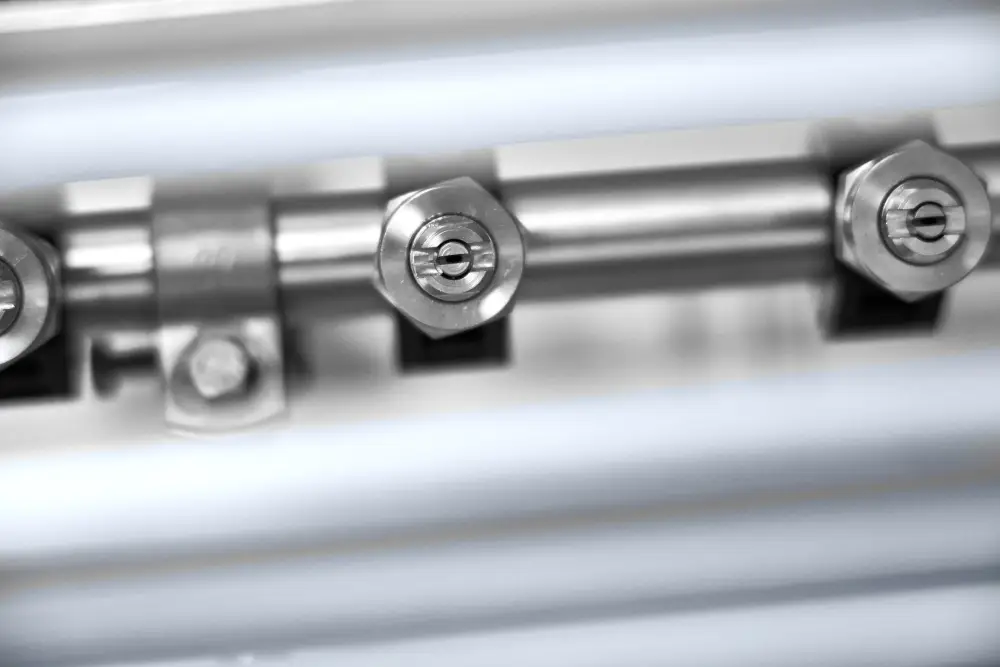

| Cleaning medium | Water, (ionized) air and combination of air and water |
| Additional cleaning media | Hot water, steam, tank for water reuse, special piping |

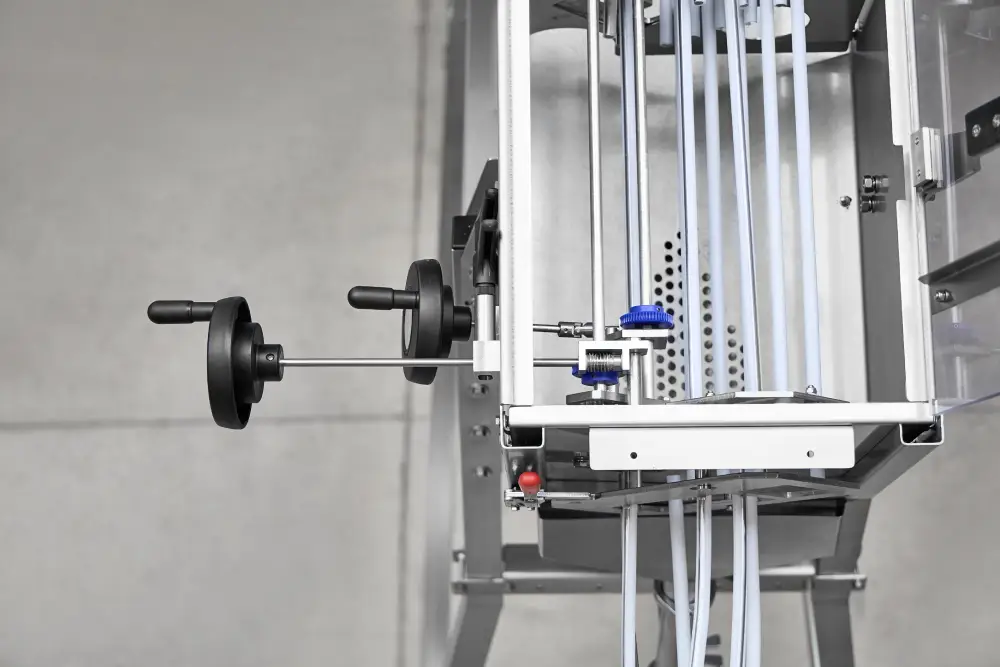

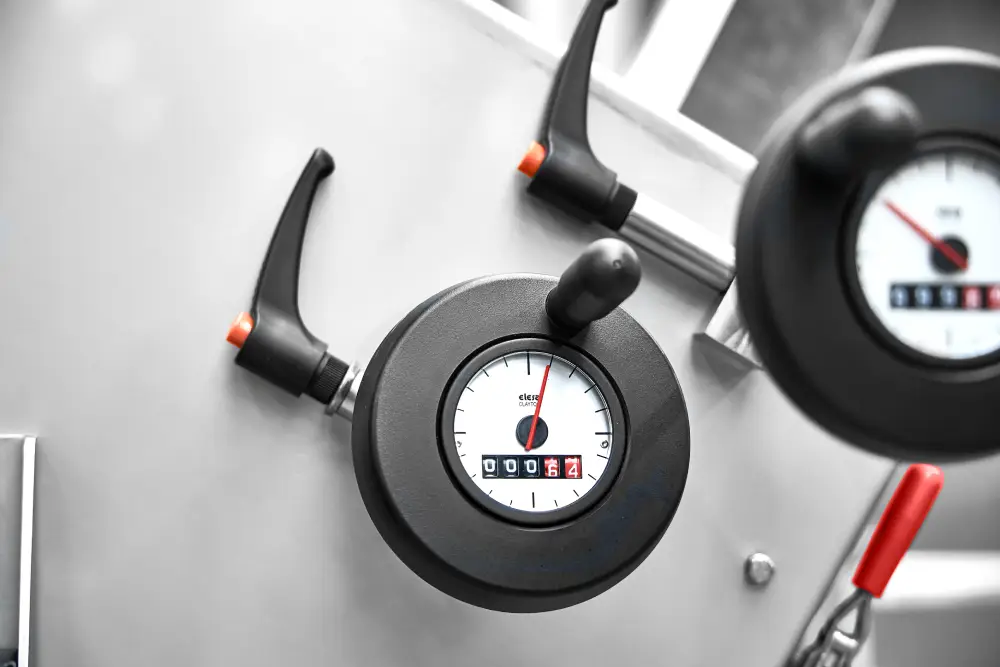

| Height adjustment / diameter adjustment | semi-automated or fully automated version |
| Can size | Suitable for all can dimensions |
| Efficient cleaning | Openable PETG or stainless steel hoods |
| Compatible transport systems | Rope or chain transport as infeed and outfeed after cleaning |
| Industries | Beverage, food, pharmaceutical, and cosmetics industry |
Place your trust in the high-performance cage rinsers from Whystler Automation for the hygienic cleaning of your cans and bottles.
Optional extensions for the cage rinser
Whystler Automation’s cage rinsers offer many customization options, including:
- Full automation
- Double version for more throughput
- Option for separating cans in the feed to the rinser head
- Treatment for hot and cold water
- Format change to adjust height and diameter
- Format set extensions
- Interface to encoder
- Electrical control for greater precision
- Window in the sink
- Interfaces for encoder integration
- Retrofit for existing rinsers in production lines
- Further options can be clarified in a personal conversation.
Would you like to know more about the product solution and individual customization options?
Then contact us and we will discuss everything personally in the form of a telephone call or an individual meeting. Contact us via our contact form.
We will then contact you promptly and arrange an appointment.
Your Whystler Automation team
